中國醫療設備電池供應商 定制 BZ 1244147 4000mah 7.4V Lipo 電池

Availability: 有庫存

$1.50
  • Buy 10000 for $1.20 each 既 節省 20%

快速查看

價格:US $ 1.2-1.5 /mah
最低訂購:1,000mah
如需訂購請聯繫我們!

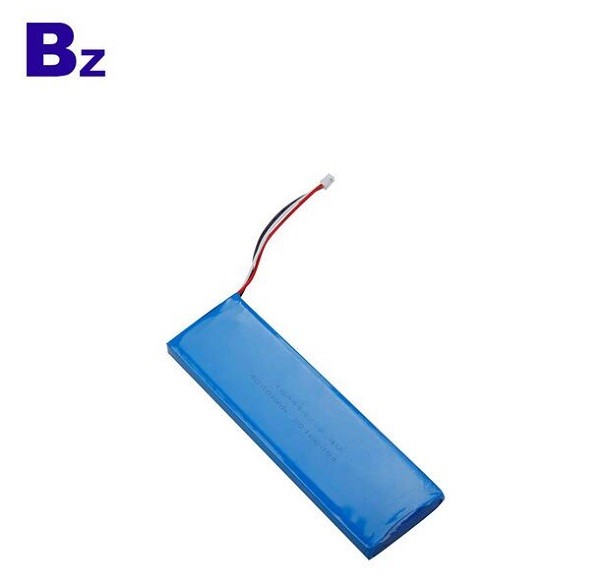

中國醫療設備電池供應商 定制 BZ 1244147 4000mah 7.4V Lipo 電池

Double click on above image to view full picture

縮小
放大

更多

詳細

     原產地:中國廣東
     品牌:BZ
     型號:124060
     類型:鋰聚合物
     標稱電壓:3.7V
     尺寸:12 * 40 * 62mm
     標稱容量:3600mAh
     循環壽命:500次
     證書:CE / RoHS / UN38.3 / MSDS / FCC
     重量:65g
     保修期:12個月
     電池類型:鋰聚合物電池
     型號:124060
     電壓:3.7V
     容量:3600mah
     應用:電子設備
     充電電流:0.2C〜1C

18650圓柱型鋰電池


4000mah 7.4V Lipo電池醫療設備

4000mah 7.4V Lipo電池醫療設備

4000mah 7.4V Lipo電池醫療設備

4000mah 7.4V Lipo電池醫療設備

4000mah 7.4V Lipo電池醫療設備


Product Parameters

No. Item General Parameter Remark
1 Rated Capacity Typical 4050mAh Standard discharge(0.2C C5A) after Standard charge
  Minimum 4000mAh
2 Nominal Voltage 7.4V Mean Operation Voltage
3 Voltage at end of 6.0V Discharge Cut-off Voltage
Discharge
4 Charging Voltage 8.4±0.03V
5 Internal Impedance ≤50mΩ Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6 Standard charge Constant Current 0.2C5A Charge time : Approx 6h
Constant Voltage 8.4V
0.01 C5A cut-off
7 Standard discharge Constant current 0.2 C5A
end voltage 6.0V
8 Fast charge Constant Current 0.5C5A Charge time : Approx 2.5h
Constant Voltage 8.4V
0.01 C5A cut-off
9 Fast discharge Constant current 0.5C5A
end voltage 6.0V
10 Maximum Continuous Charge Current 1 C5A
11 Maximum Continuous Discharge Current 1 C5A
12 Operation Temperature Range Charge: 0~45 60±25%R.H.
Bare Cell
Discharge: -20~60
13 Storage Temperature Range Less than 1 year: -20~25 60±25%R.H.
  at the shipment state
less than 3 months: -20~40℃

14 Pack  Dimension

High:max147mm

Width: max 4mm

Thickness: max123mm

Initial  Dimension



鋰離子電池供應商

鋰電池廠家

18650電池18650圓柱型鋰電池鋰聚合物電池聚合物鋰電池

鋰聚合物電池 shipping


1. Q: Where can I get the price?

A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

or tell us in your email so that we'll regard your inquiry priority.



2.  Q:  Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will

provide a full solution to your with these factors taken into consideration: working temperature, dimension,

compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.

3.  Q:  Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples

to test our battery quality first.



4.  Q: What kind of certificates could you provide for the battery?

A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related

certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates

fee could be refunded.



5. Q: Shipping terms:

 1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

 2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept

other shipping terms according to your requirements.



6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the

professional sales team to follow up your case.
