圓柱電池 - BZ 18650 - 2S - 2600mAh - 7.4V - 鋰離子電池 - 可充電電池

Availability: 有庫存

$2.92
  • Buy 5000 for $2.80 each 既 節省 5%

快速查看

價格:2.8-2.92美元/件
最小訂單:2000件
如需訂購請與我們聯系!

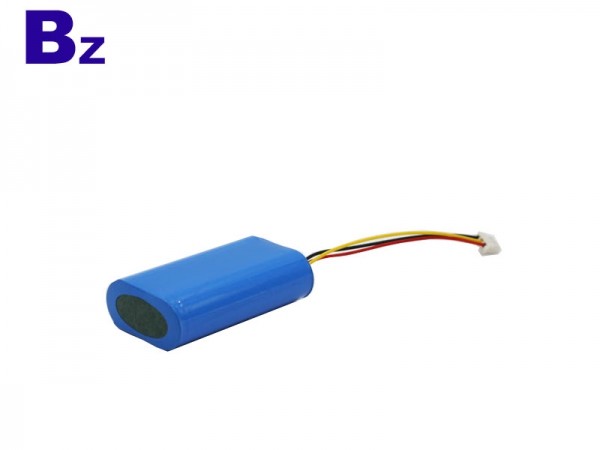

鋰離子電池 18650 - 2S - 2600mAh - 7.4V

Double click on above image to view full picture

縮小
放大

更多

  • 鋰離子電池 18650 - 2S - 2600mAh - 7.4V
  • 鋰離子電池 18650 - 2S - 2600mAh
  • 鋰離子電池 18650 - 2S
  • 鋰離子電池 18650
  • 鋰離子電池 18650 - 2600mAh - 7.4V

詳細

尺寸:T20*W39*L70MM
種類: 鋰聚合物圓柱電池
重量:85g
容量:2600mAh
電壓:7.4V

No.

(序号)

Item

(项目)

General Parameter

(常规参数)

Remark

(备注)

1

Rated Capacity

(额定容量)

Typical

(典型容量)

2650mAh

Standard discharge0.2C C5A) after Standard charge

(标准充电后0.2C5A标准放电)

Minimum

(最小容量)

2600mAh

2

Nominal Voltage

(正常电压)

7.4V

Mean Operation Voltage

(即工作电压)

3

Voltage at end of

Discharge

(放电终止电压)

5.8V

Discharge Cut-off Voltage

(放电截止电压)

4

Charging Voltage

(充电电压)

8.4±0.03V



5

Internal Impedance

(内阻)

180mΩ

Internal resistance measured at AC 1KHZ after 50% charge

(半电态下用交流法测量内阻)

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

(用出货后不到一个星期及循环次数不多于5次的新电池测量)

6

Standard charge

(标准充电)

Constant Current 0.2C5A

Constant Voltage 8.4V

0.01 C5A cut-off

(持续电流:0.2C5A

持续电压:8.4V

截止电流:0.01 C5A

Charge time : Approx 6h

(充电时间:大约6个小时)

7

Standard discharge

(标准放电)

Constant current 0.2 C5A

end voltage5.8V

(持续电流:0.2C5A

截止电压:5.8V



8

Fast charge

(快速充电)

Constant Current 1.0C5A

Constant Voltage 8.4V

0.01 C5A cut-off

(持续电流:1.0C5A

持续电压:8.4V

截止电流:0.01 C5A

Charge time : Approx 2.5h

(充电时间:大约2.5个小时)
