詳細
原產地:廣東,中國(大陸)
品牌名稱:BZ

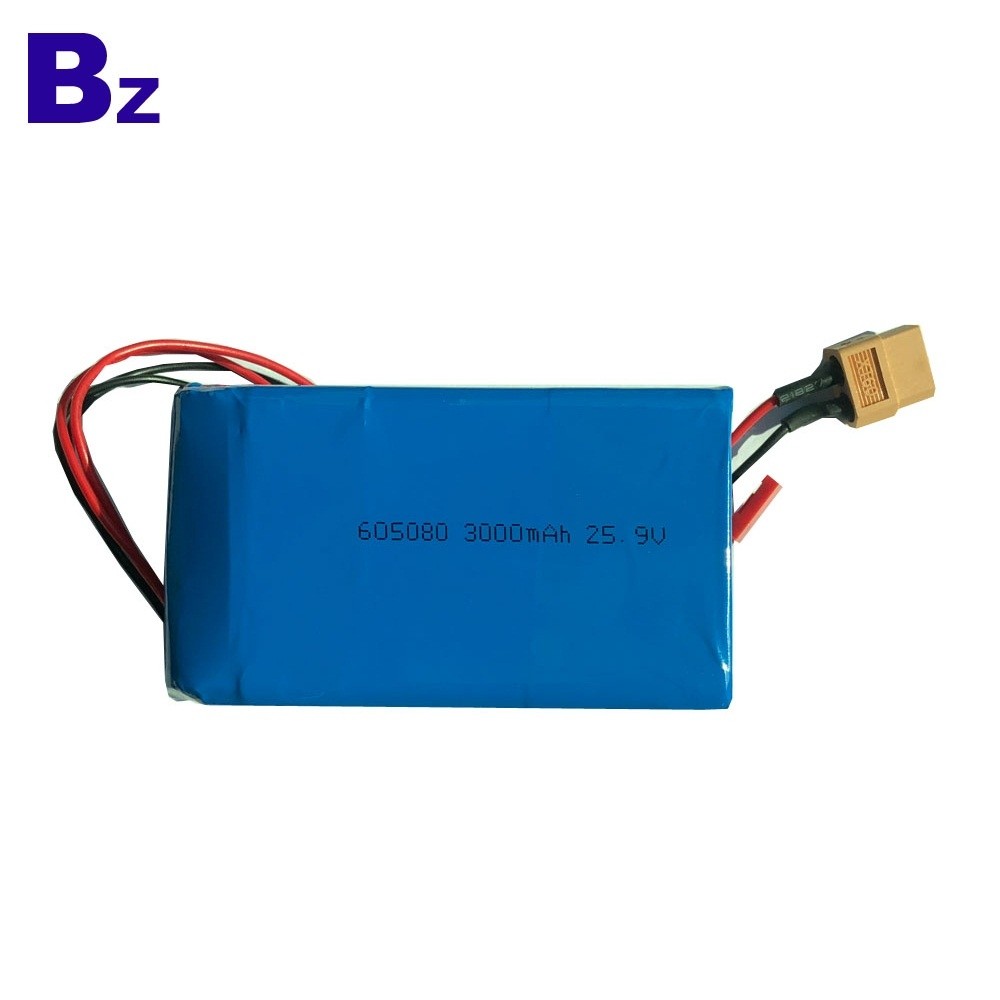

型號:605080-7S
類型:鋰聚合物
標稱電壓:25.9V
尺寸:42 * 50 * 83mm
標稱容量:3000mAh
產品名稱:605080
保修:1年
重量:540克
循環壽命:500次
容量:3000mah
電壓:25.9V
應用:醫療產品
證書:CE / RoHS / UN38.3 / MSDS
付款方式:Paypal.TT.Escrow.Western Union
最大充電電流:1C
產品參數
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
Typical |
3050mAh |
Standard discharge(0.2C C5A) after Standard charge |
Minimum |
3000mAh |
|||
2 |
Nominal Voltage |
25.9V |
Mean Operation Voltage |
|
3 |
Voltage at end of |
21.0V |
Discharge Cut-off Voltage |
|
Discharge |
||||
4 |
Charging Voltage |
29.4±0.03V |
||
5 |
Internal Impedance |
≤30mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
Constant Voltage 29.4V |
||||
0.01 C5A cut-off |
||||
7 |
Standard discharge |
Constant current 0.2 C5A |
||
end voltage 21.0V |
||||
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
Constant Voltage 29.4V |
||||
0.01 C5A cut-off |
||||
9 |
Fast discharge |
Constant current 0.5C5A |
||
end voltage 21.0V |
||||
10 |
Maximum Continuous Charge Current |
1 C5A |
||
11 |
Maximum Continuous Discharge Current |
1C5A |
||
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
Bare Cell |
||||
Discharge: -20~60℃ |
||||
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
14 |
Pack Dimension |
High: max83mm Width: max50mm |
Initial Dimension |
