空氣淨化器高品質鋰電池 BZ 686196 5000mah 3.7V 鋰聚合物電池

Availability: 有庫存

$5.60
  • Buy 10000 for $4.90 each 既 節省 13%

快速查看

價格:US $ 1.2-1.5 /安培
最低訂購:1,000安培
如需訂購請聯繫我們!

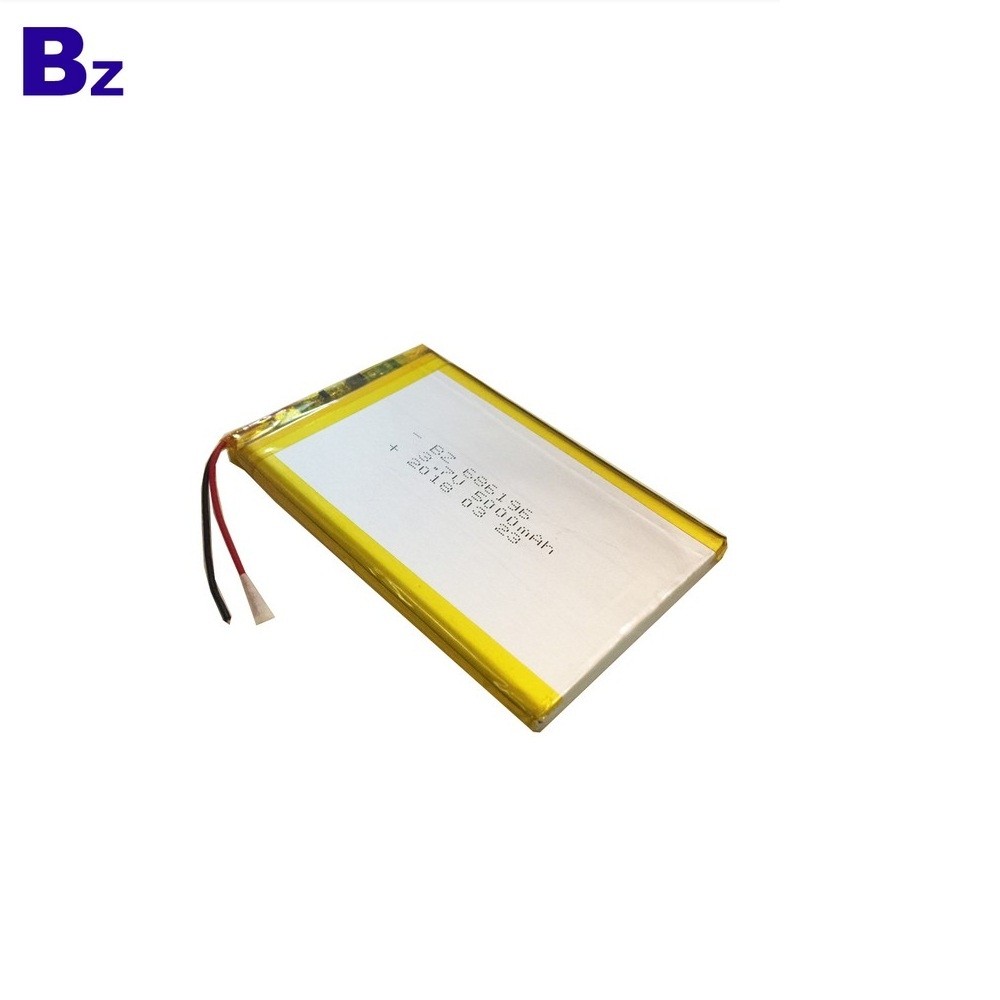

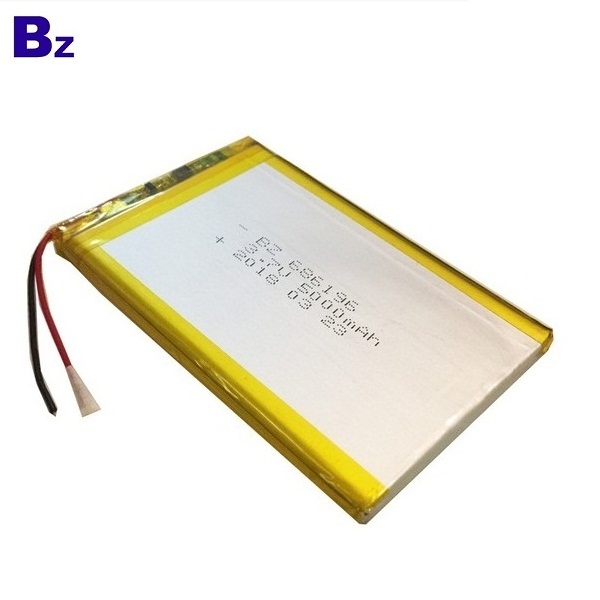

686196 5000mah 3.7V 鋰聚合物電池

Double click on above image to view full picture

縮小
放大

更多

  • 686196 5000mah 3.7V 鋰聚合物電池
  • 5000mah 3.7V 鋰聚合物電池
  • 3.7V 鋰聚合物電池
  • 5000mah 鋰聚合物電池

詳細

     原產地:廣東,中國(大陸)
     品牌名稱:BZ
     型號:686196
     類型:鋰聚合物
     標稱電壓:3.7V
     大小:686196
     額定容量:5000mAh
     容量:5000mAh
     電壓:3.7V
     循環壽命:500次
     應用:MID電池
     重量:95G
     保修:1年
     電池類型:鋰聚合物
     標準充電:0.2C / 0.5C / 1C
     證書:CE / RoHS / UN38.3 / MSDS
     付款方式:Paypal.TT.Escrow.Western Union


18650圓柱型鋰電池



686196 5000mah 3.7V 鋰聚合物電池

5000mah 3.7V 鋰聚合物電池

5000mah 鋰聚合物電池

鋰聚合物電池

產品參數



No. Item General Parameter Remark
1 Rated Capacity Typical 5100mAh Standard discharge(0.2C C5A) after Standard charge
Minimum 5000mAh
2 Nominal Voltage 3.7V Mean Operation Voltage
3 Voltage at end of 3.0V Discharge Cut-off Voltage
Discharge
4 Charging Voltage 4.2±0.03V
5 Internal Impedance ≤50mΩ Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6 Standard charge Constant Current 0.2C5A Charge time : Approx 6h
Constant Voltage 4.2V
0.01 C5A cut-off
7 Standard discharge Constant current 0.2 C5A
end voltage 3.0V
8 Fast charge Constant Current 0.5C5A Charge time : Approx 2.5h
Constant Voltage 4.2V
0.01 C5A cut-off
9 Fast discharge Constant current 0.5C5A
end voltage 3.0V
10 Maximum Continuous Charge Current 1 C5A
11 Maximum Continuous Discharge Current 1C5A
12 Operation Temperature Range Charge: 0~45 60±25%R.H.
Bare Cell
Discharge: -20~60
13 Storage Temperature Range Less than 1 year: -20~25 60±25%R.H.
less than 3 months: -20~40℃ at the shipment state
14 Pack  Dimension

High:.max71mm

Width: max61.5mm

Thickness: max6.8mm

Initial  Dimension



鋰離子電池供應商

鋰電池廠家

18650電池18650圓柱型鋰電池鋰聚合物電池聚合物鋰電池

鋰聚合物電池 shipping



1. Q: Where can I get the price?

A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

or tell us in your email so that we'll regard your inquiry priority.



2.  Q:  Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will

provide a full solution to your with these factors taken into consideration: working temperature, dimension,

compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.

3.  Q:  Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples

to test our battery quality first.



4.  Q: What kind of certificates could you provide for the battery?

A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related

certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates

fee could be refunded.



5. Q: Shipping terms:

 1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

 2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept

other shipping terms according to your requirements.



6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the

professional sales team to follow up your case.
