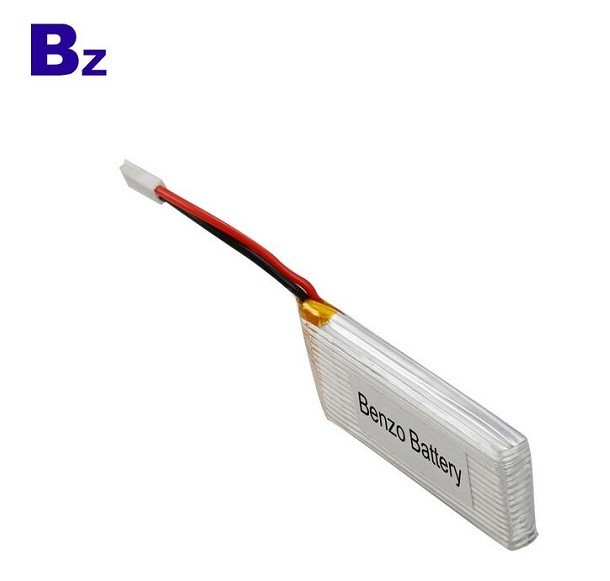

詳細
原產地：中國廣東（大陸）
品牌：Benzo
型號：802656
類型：鋰聚合物
標稱電壓：3.7V
尺寸：8 * 26 * 59mm
標稱容量：850mAh
證書：CE / RoHS / UN38.3 / MSDS / FCC
循環壽命：500次
重量：21G
保修期：12個月
電池類型：鋰聚合物電池
型號：802656
電壓：3.7V
應用：無人機
付款方式：Paypal.TT.Escrow.Western Union
充電電流：0.2C〜1C
Specification:
|
NO |
Items |
Criteria |
Remarks |
|
2.1 |
Typical Capacity |
855mAh |
Discharge:0.2CmA cut-off voltage:9.0V 0.2C |
|
Minimum Capacity |
850mAh |
||
|
2.2 |
Energy |
3.145Wh |
|
|
2.3 |
Nominal Voltage |
3.7V |
|
|
2.4 |
Open Circuit Voltage |
3.7V~4.2V |
|
|
2.5 |
Internal Impedance |
≤150milliohm |
AC 1KHz after standard charge |
|
2.6 |
Charge voltage |
4.2V |
|
|
2.7 |
Standard charge current |
850mA |
1.0C |
|
2.8 |
Max. charge current |
1700mA |
2.0C |
|
2.10 |
Max. discharge current |
8.5A( 10.0C) |
Cont Discharge Current |
|
17A (20.0C) |
Burst Discharge Current |
||
|
2.11 |
Discharge cut-off voltage |
3.0V |
|
|
2.12 |
Operating Temperature |
0~+45℃ |
Charging |
|
-10~+50℃ |
Discharging |
1. Q: Where can I get the price?
A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us
or tell us in your email so that we'll regard your inquiry priority.
2. Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will
provide a full solution to your with these factors taken into consideration: working temperature, dimension,
compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
3. Q: Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples
to test our battery quality first.
4. Q: What kind of certificates could you provide for the battery?
A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related
certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates
fee could be refunded.
5. Q: Shipping terms:
1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)
2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept
other shipping terms according to your requirements.
6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
