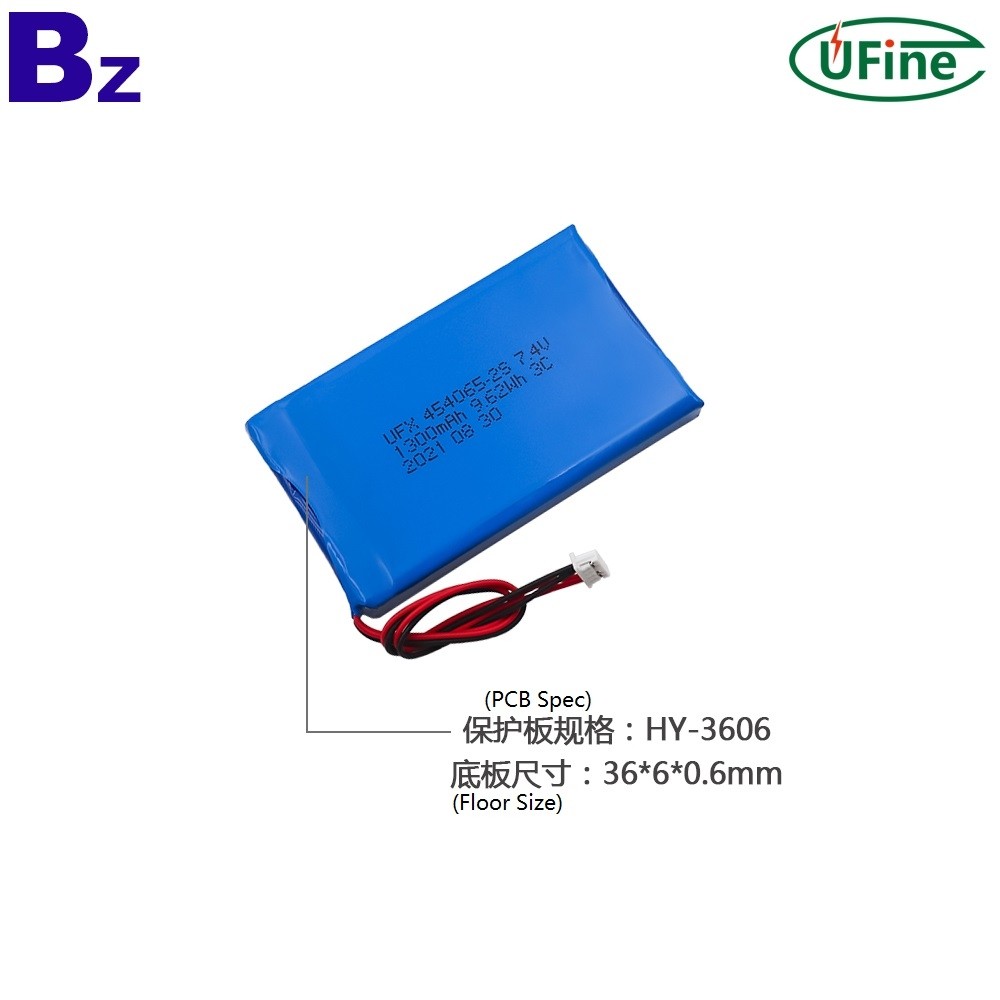

鋰電芯廠客制化 DVR 行車記錄儀電池 UFX 454065 2S1P 7.4V 1300mAh 3C 倍率鋰離子聚合物電池組

Availability: 有庫存

$4.90
  • Buy 10000 for $4.70 each 既 節省 5%

快速查看

價格:US $ 1.2-1.5 /安培
最低訂購:1,000安培
如需訂購請聯繫我們!

鋰電芯廠定制 7.4V 1300mAh 電池組

Double click on above image to view full picture

縮小
放大

更多

  • 鋰電芯廠定制 7.4V 1300mAh 電池組
  • 1300mAh 3C 倍率 DVR 行車記錄儀電池
  • 454065 2S1P 7.4V 1300mAh 3C 倍率鋰離子聚合物電池組

詳細

     產地:中國廣東
     品牌名稱:UFX
     型號:454065-1P2S
     類型:鋰聚合物
     標稱電壓:7.4V
     尺寸: 9*40*68毫米
     標稱容量:1300mAh
     產品名稱:UFX 454065-1P2S可充電電池
     保修:1年
     重量:50克
     循環壽命:500次
     應用:DVR 行車記錄儀電池
     證書:UN38.3/CE/MSDS/ROHS
     付款方式:Paypal.TT.Escrow.Western Union
     最大充電電流:1C

18650圓柱型鋰電池

專業定制鋰離子聚合物電池組

3C 倍率 DVR 行車記錄儀電池

454065-1P2S 7.4V 1300mAh 3C 倍率鋰離子聚合物電池組

產品參數

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1320mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1300mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 6.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

3C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max68mm

Width: max40mm
Thickness: max9mm

Initial  Dimension



鋰離子電池供應商

鋰電池廠家

18650電池18650圓柱型鋰電池鋰聚合物電池聚合物鋰電池

鋰聚合物電池 shipping



1. Q: Where can I get the price?

A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

or tell us in your email so that we'll regard your inquiry priority.



2.  Q:  Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will

provide a full solution to your with these factors taken into consideration: working temperature, dimension,

compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.

3.  Q:  Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples

to test our battery quality first.



4.  Q: What kind of certificates could you provide for the battery?

A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related

certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates

fee could be refunded.



5. Q: Shipping terms:

 1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

 2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept

other shipping terms according to your requirements.



6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the

professional sales team to follow up your case.
