熱銷數碼相框鋰電池 UFX 603048 900mAh 3.7V 鋰聚合物電池,具有KC認證

Availability: 有庫存

$1.75
  • Buy 10000 for $1.56 each 既 節省 11%

快速查看

價格:US $ 1.2-1.5 /安培
最低訂購:1,000安培
如需訂購鋰電池請聯繫我們!

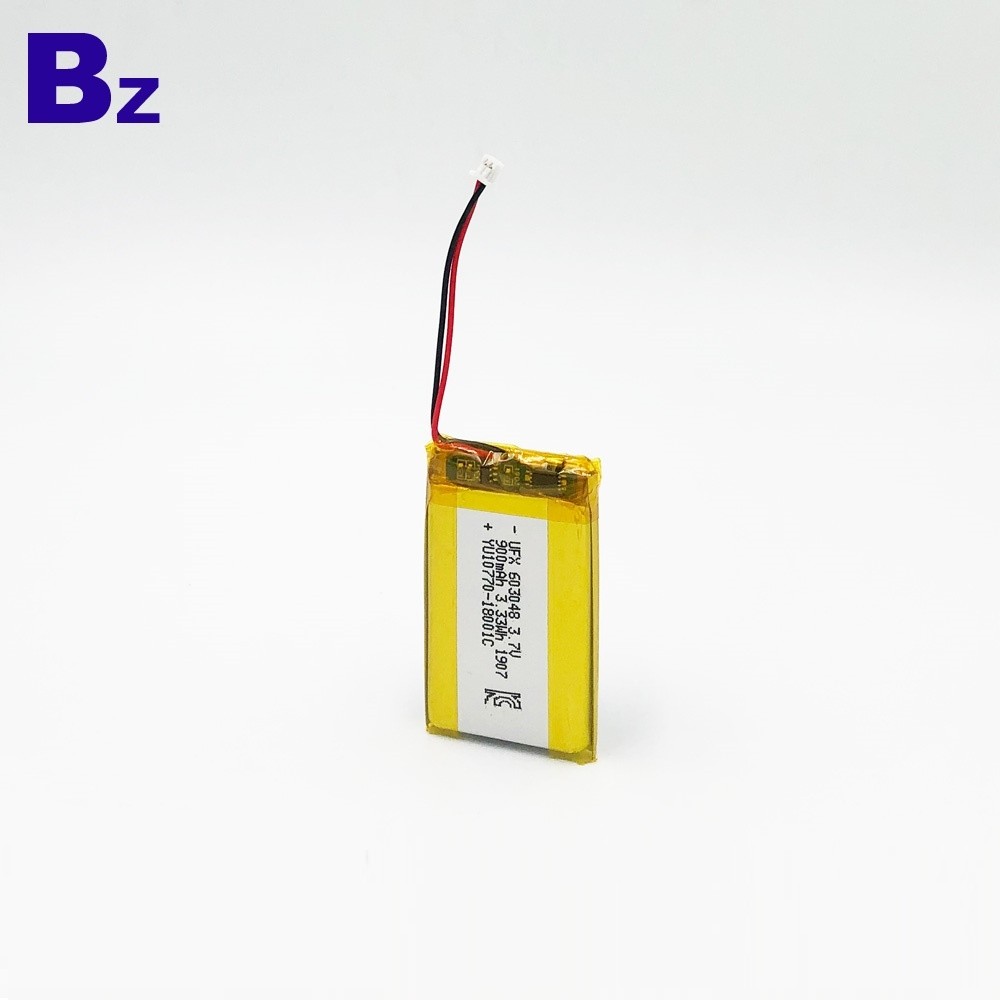

用於數碼相框的900mAh電池

Double click on above image to view full picture

縮小
放大

更多

  • 用於數碼相框的900mAh電池
  • 用於數碼相框的3.7V電池
  • 603048 900mAh 3.7V鋰聚合物電池
  • 900mAh 3.7V鋰聚合物電池
  • 具有KC認證的900mAh鋰聚合物電池
  • 具有KC認證的鋰聚合物電池

詳細

     產地:中國廣東
     品牌名稱:UFX
     型號:603048
     類型:鋰聚合物
     標稱電壓:3.7V
     尺寸:6*30*50毫米
     標稱容量:900mAh
     產品名稱:UFX 603048 鋰離子電池
     保修:1年
     重量:17
     循環壽命:500次
     應用:數碼相框產品
     證書:UN38.3/CE/MSDS/ROHS/KC
     付款方式:Paypal.TT.Escrow.Western Union
     最大充電電流:1C


18650圓柱型鋰電池

用於數碼相框的900mAh電池

用於數碼相框的3.7V電池

603048 900mAh 3.7V鋰聚合物電池

900mAh 3.7V鋰聚合物電池

具有KC認證的900mAh鋰聚合物電池

具有KC認證的鋰聚合物電池

產品參數

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

920mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

900mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max50mm

Width: max30mm
Thickness: max6mm

Initial  Dimension



鋰離子電池供應商

鋰電池廠家

18650電池18650圓柱型鋰電池鋰聚合物電池聚合物鋰電池

鋰聚合物電池 shipping



1. Q: Where can I get the price?

A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

or tell us in your email so that we'll regard your inquiry priority.



2.  Q:  Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will

provide a full solution to your with these factors taken into consideration: working temperature, dimension,

compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.

3.  Q:  Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples

to test our battery quality first.



4.  Q: What kind of certificates could you provide for the battery?

A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related

certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates

fee could be refunded.



5. Q: Shipping terms:

 1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

 2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept

other shipping terms according to your requirements.



6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the

professional sales team to follow up your case.
