詳細
產地：中國廣東
品牌名稱：BZ
型號：783970
類型：鋰錳電池
標稱電壓：3.0V
尺寸：7.8*39*72毫米
標稱容量：5500mAh

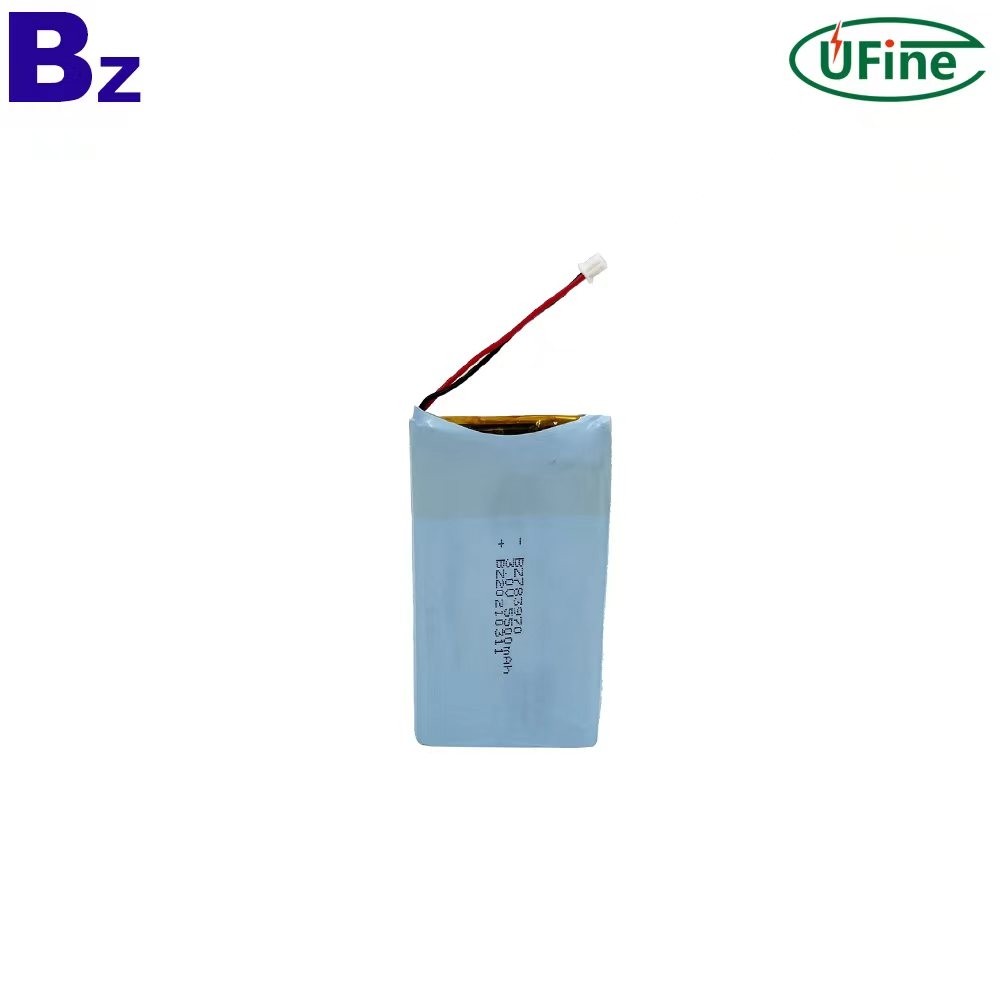

產品名稱：783970 鋰錳電池
保修：1年
重量：40克
應用：物聯網設備
證書：UN38.3/CE/MSDS/ROHS
付款方式：Paypal.TT.Escrow.Western Union
產品參數
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
5550mAh |
|
|
Minimum |
5500mAh |
|||
|
2 |
Nominal Voltage |
3.0V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
2.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Internal Impedance |
≤60mΩ |
|
|
|
|
||||
|
5 |
Maximum Continuous Discharge Current |
10mA |
||
|
6 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
7 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
8 |
Pack Dimension |
High: max72mm Width: max39mm |
Initial Dimension |
|
1. Q: Where can I get the price?
A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us
or tell us in your email so that we'll regard your inquiry priority.
2. Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will
provide a full solution to your with these factors taken into consideration: working temperature, dimension,
compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
3. Q: Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples
to test our battery quality first.
4. Q: What kind of certificates could you provide for the battery?
A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related
certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates
fee could be refunded.
5. Q: Shipping terms:
1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)
2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept
other shipping terms according to your requirements.
6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
