詳細
產地:中國廣東
品牌名稱:BZ
型號:18650-7S4P
類型:鋰離子
標稱電壓:25.2V
尺寸:76*88*165毫米
標稱容量:10.4Ah

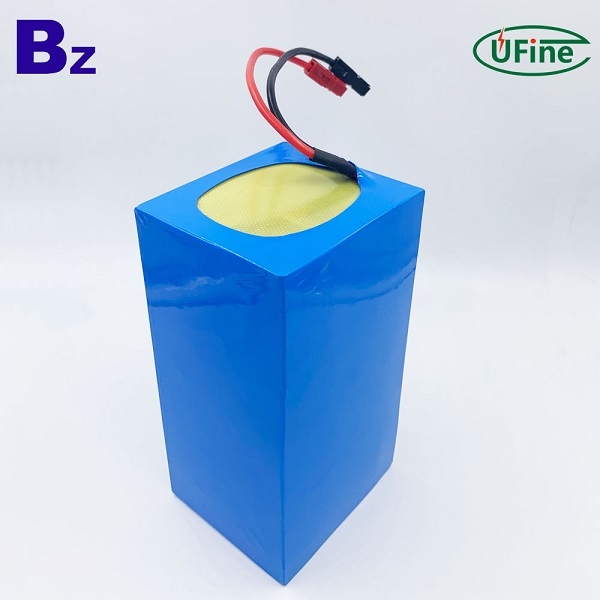

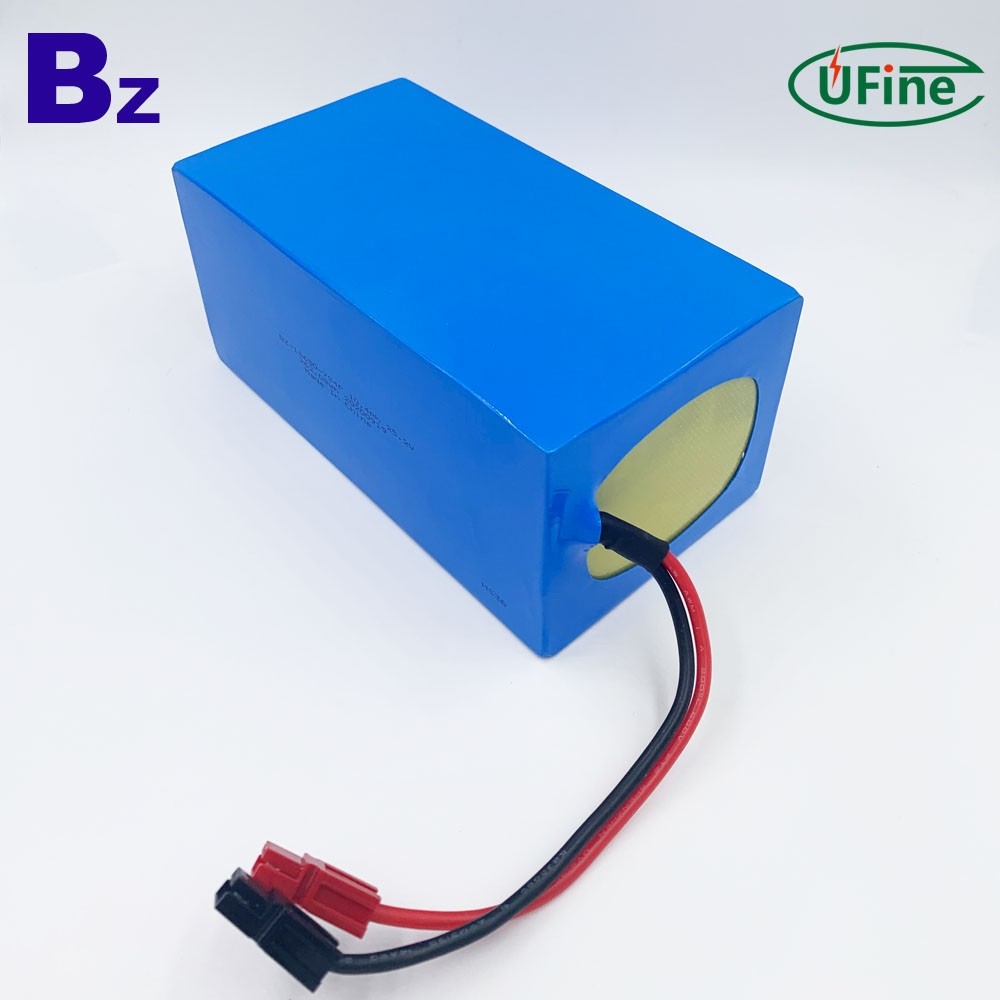

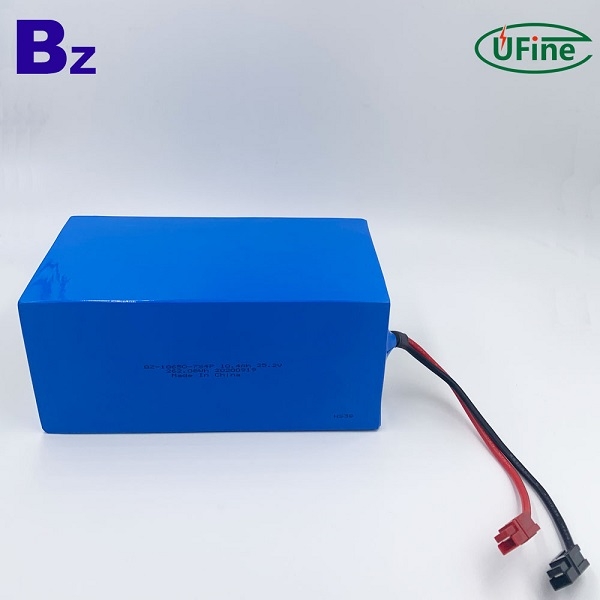

產品名稱:BZ 18650-7S4P 鋰離子電池
保修:1年
重量:1.3kg
循環壽命:2000次
應用:電動叉車電池
證書:UN38.3/CE/MSDS/ROHS/KC
付款方式:Paypal.TT.Escrow.Western Union
最大充電電流:≤0.5C
產品參數
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
Typical |
10.4Ah |
Standard discharge0.2C (A) after Standard charge |
Minimum |
9.9Ah |
|||
2 |
Nominal Voltage |
25.2V |
Mean Operation Voltage |
|
3 |
Voltage at end of |
About 19.6V |
Discharge Cut-off Voltage |
|
Discharge |
||||
4 |
Charging Voltage |
29.2V |
||
5 |
Internal Impedance |
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
6 |
Standard charge |
Constant Current 0.2C |
|
|
Constant Voltage 29.2V |
||||
0.02 C cut-off |
||||
7 |
Standard discharge |
Constant current 0.2 C |
||
end voltage 19.25V |
||||
8 |
Fast charge |
Constant Current 0.5C |
|
|
Constant Voltage 29.4V |
||||
0.02 C cut-off |
||||
9 |
Fast discharge |
Constant current 10A |
||
end voltage 19.6V |
||||
10 |
Maximum Continuous Charge Current |
15A/15A |
||
11 |
Maximum Continuous Discharge Current |
15A/15A |
||
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
Bare Cell |
||||
Discharge: -20~60℃ |
||||
13 |
Storage Temperature Range |
Capacity 80%: 0~40℃ |
60±25%R.H. |
|
Recommended long-term storage temperature: 15~25℃ |
at the shipment state |
|||
14 |
Pack Dimension |
High: max165mm Width: max88mm |
Initial Dimension |
1. Q: Where can I get the price?
A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us
or tell us in your email so that we'll regard your inquiry priority.
2. Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will
provide a full solution to your with these factors taken into consideration: working temperature, dimension,
compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
3. Q: Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples
to test our battery quality first.
4. Q: What kind of certificates could you provide for the battery?
A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related
certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates
fee could be refunded.
5. Q: Shipping terms:
1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)
2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept
other shipping terms according to your requirements.
6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
