BZ 803063 1200mah 15c 7.4v 高倍率聚合物電池 可用於RC航模模型

Availability: 有庫存

$6.20
  • Buy 10000 for $5.90 each 既 節省 5%

快速查看

價格:US $ 1.5-2.0 /mah
最低訂購:1,000mah
如需訂購請聯繫我們!

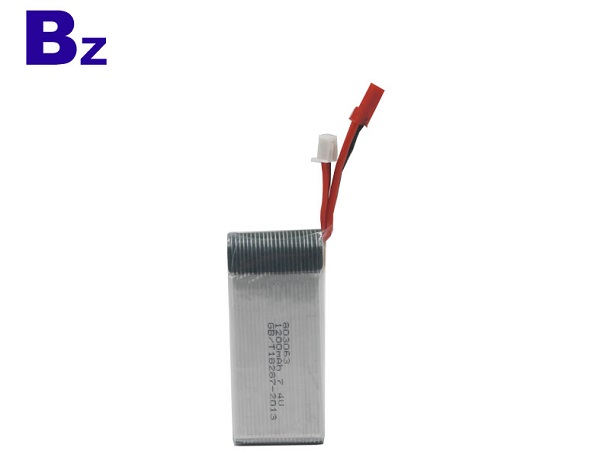

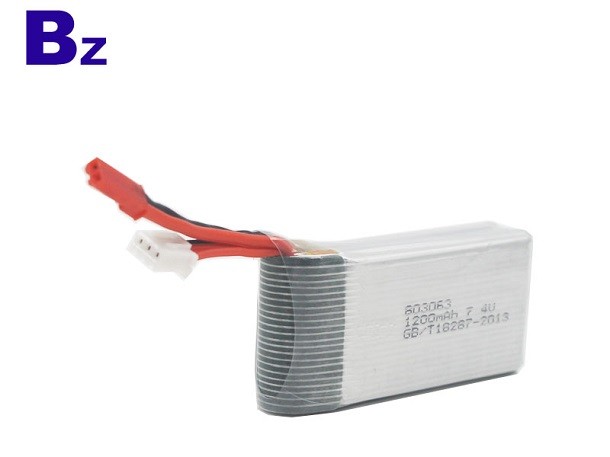

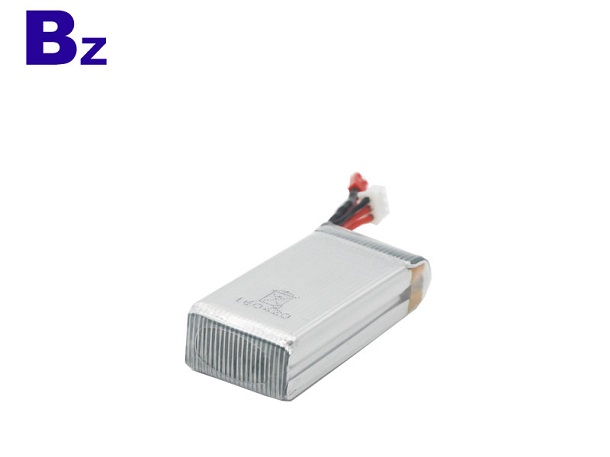

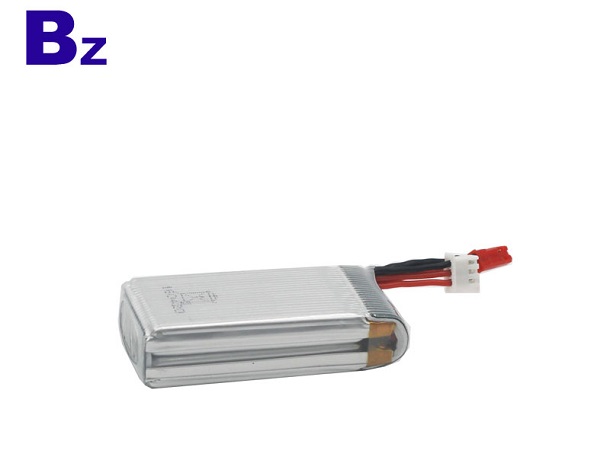

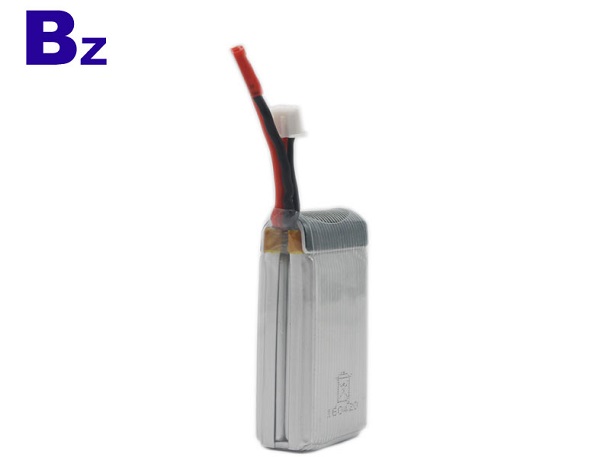

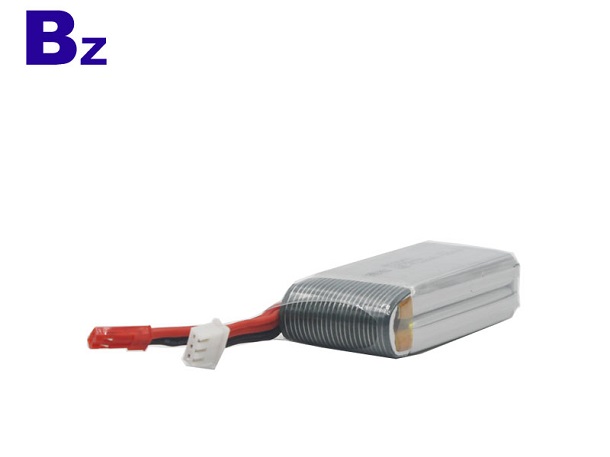

BZ 803063 1200mah 15c 7.4v 高倍率聚合物電池 可用於RC航模模型

Double click on above image to view full picture

縮小
放大

更多

詳細

     原產地:中國廣東(大陸)
     品牌:BZ
     型號:803063
     類型:鋰聚合物
     標稱電壓:7.4V
     尺寸:8 * 30 * 65mm
     額定容量:1200mAh
     商品名稱:803063
     保修期:1年
     重量:20g
     循環壽命:500次
     容量:1200mah
     電壓:7.4V
     應用:RC航模產品
     證書:CE / RoHS / UN38.3 / MSDS
     付款方式:Paypal.TT.Escrow.Western Union
     最大充電電流:1C

18650圓柱型鋰電池



用於RC航模的鋰聚合物電池

用於RC航模的鋰聚合物電池

1200mah 15c 7.4v高倍率鋰聚合物電池

1200mah 15c 7.4v高倍率電池

1200mah 15c 7.4v高倍率電池

1200mah 7.4v高倍率電池

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1200mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1150mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 1C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 15 C5A



end voltage 6.0V

8

Fast charge

Constant Current 2C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 15C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

2C5A



11

Maximum Continuous Discharge Current

15C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max65mm

Width: max30mm
Thickness: max8mm

Initial  Dimension



鋰離子電池供應商

鋰電池廠家

18650電池18650圓柱型鋰電池鋰聚合物電池聚合物鋰電池

鋰聚合物電池 shipping


1. Q: Where can I get the price?

A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

or tell us in your email so that we'll regard your inquiry priority.



2.  Q:  Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will

provide a full solution to your with these factors taken into consideration: working temperature, dimension,

compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.

3.  Q:  Can you provide samples?
A: Yes, we can. After discussion and designing with our sales and engineer, we encourage client to order samples

to test our battery quality first.



4.  Q: What kind of certificates could you provide for the battery?

A: It’s customized design, no current certificate, but we could apply CE, UL, KC,UN38.3 and other related

certificates for you, but the certificates fee needs to be paid by you, if your quantity is big enough, certificates

fee could be refunded.



5. Q: Shipping terms:

 1.Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

 2.Bulk production:sending out by cargo shipping / airfreight /Express(DHL/UPS/FedEx/TNT),or we can accept

other shipping terms according to your requirements.



6. Q: Can we visit your factory?
A: we aresincerely welcome you to visit our factory. Once we have your schedule, we will arrange the

professional sales team to follow up your case.
